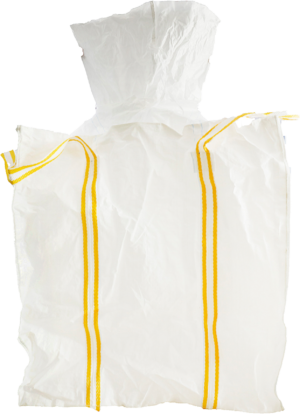

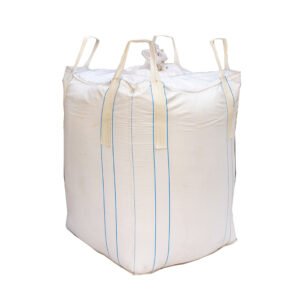

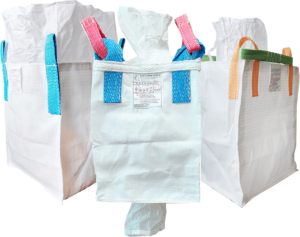

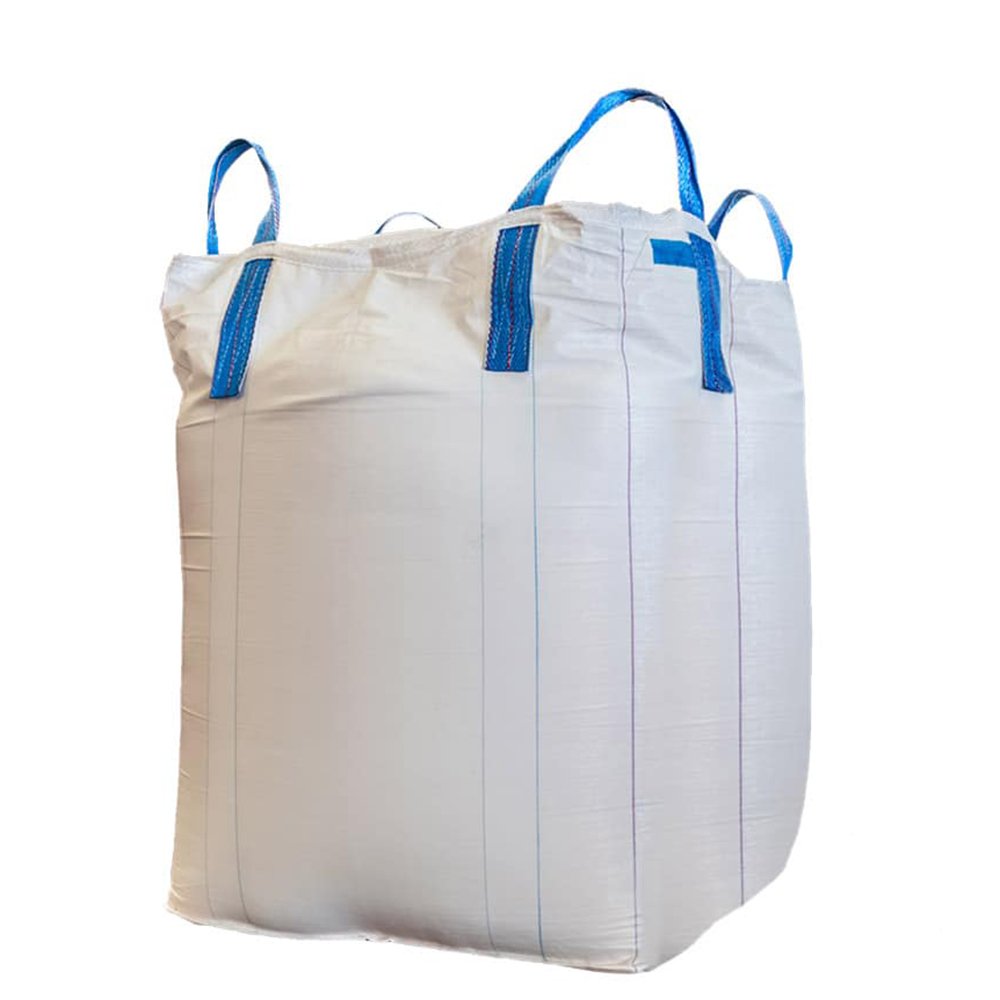

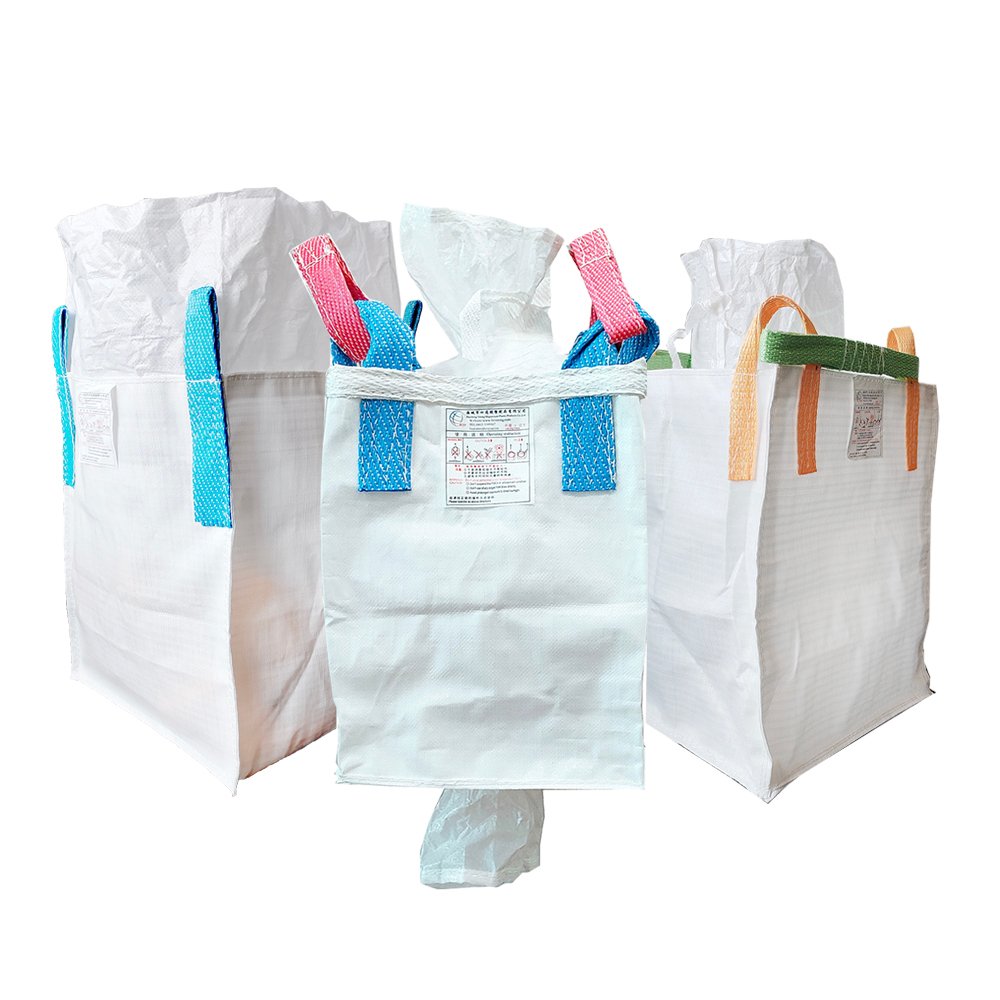

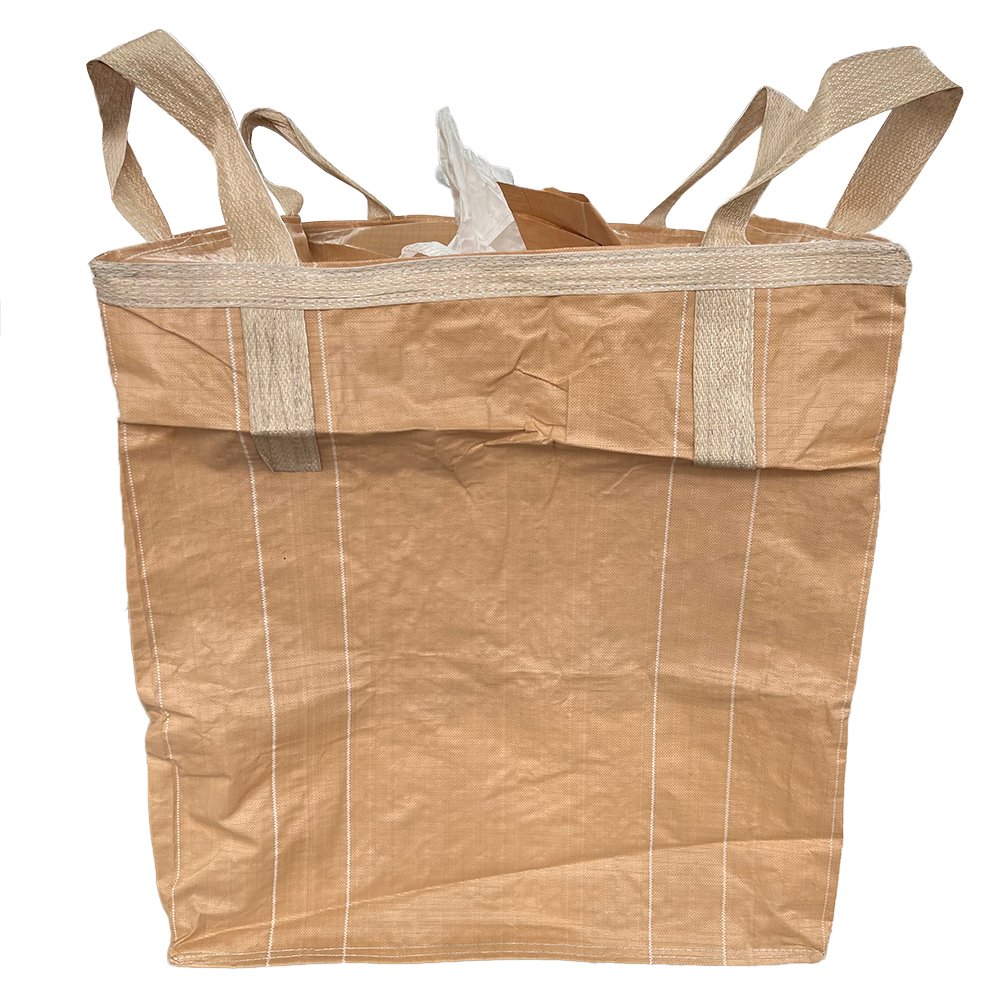

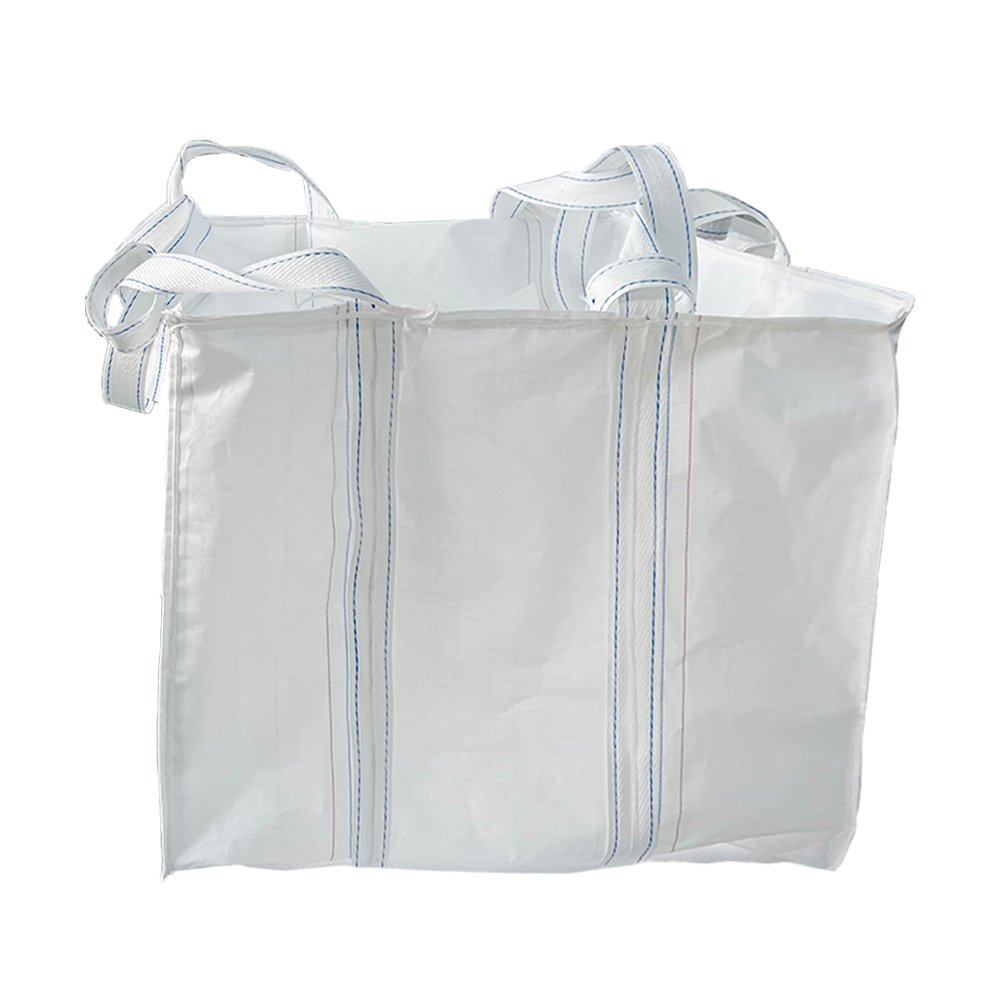

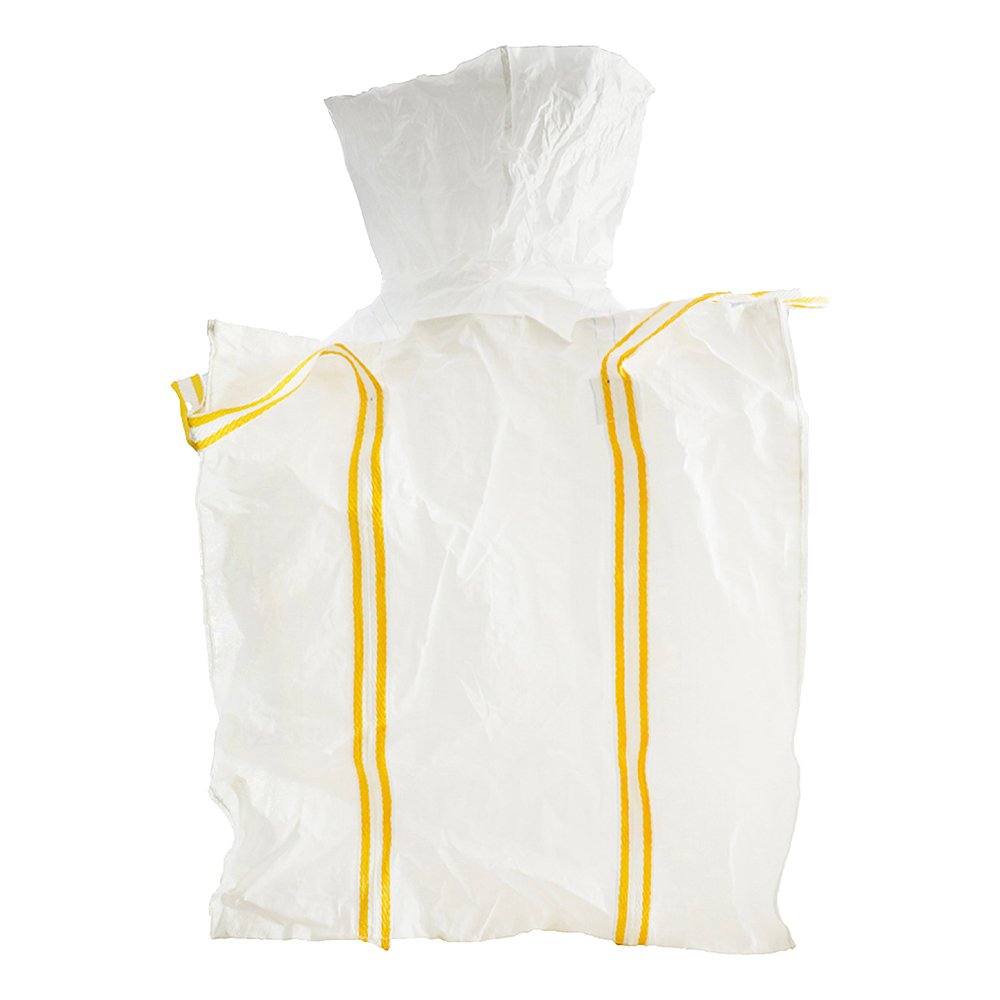

FIBC Bag
Product Details：

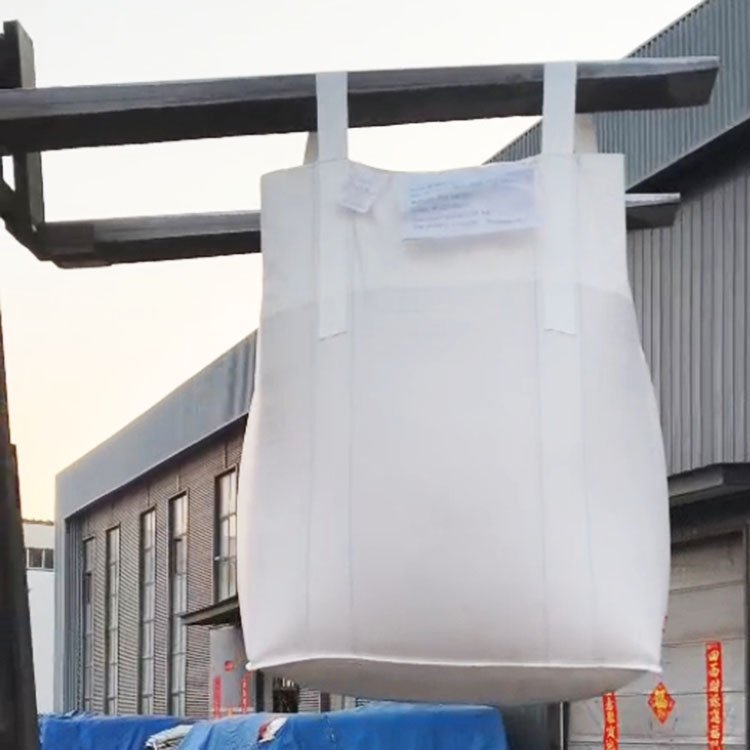

FIBC bag pouch has two seams sewn along two opposing sides to form two panels, forming a “U” panel shape. U-Panel FIBC is globally recognized as the industry standard and is the most popular FIBC shape. This structure gives the bag a great lifting capacity.
Manufactured from 100% virgin polymer which is fabricated into a flat-woven polypropylene material.

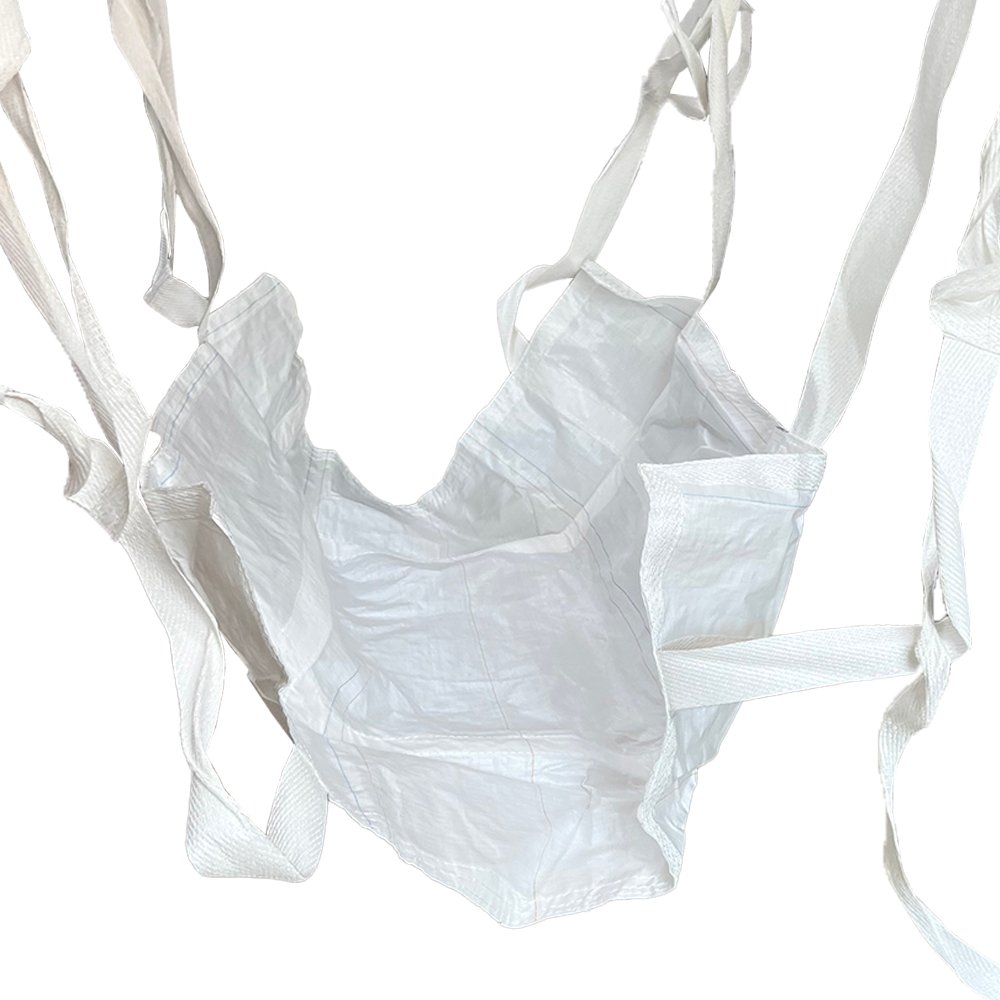

A long piece of material is cut into a U-shape, and two opposing panels are sewn together to form a U, forming the shape of a bag.

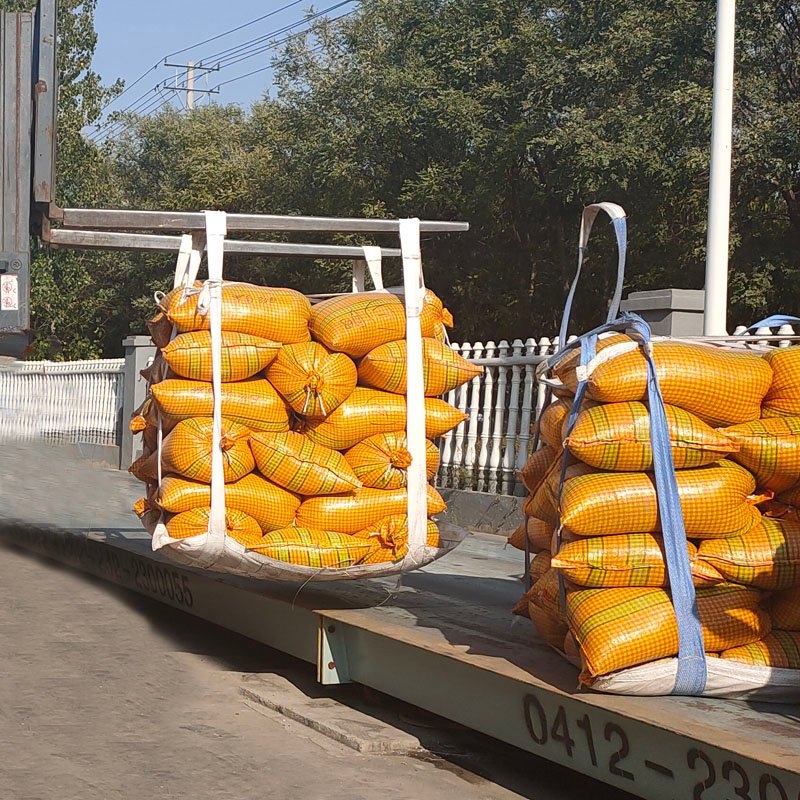

Large lifting capacity, including corner handles, for added strength.
The width can vary from 90cm-100cm and be customized further.
Suitable for various filling and discharge options.
SWL (safe working load): 500kg to 2500kg
Industry-standard across the globe.
Additional information
| SWL Range | 500 kg to 2000 kg |
|---|---|
| SF Option | 5:1 / 6:1 |
| Lifting Option | One loop, Two loop, Four loop, Tunnel loop. Loops made from PP loop (standard loops), PP Multifilament loops (for soft loops), PP fibrillated loops (for semi soft loops) available in various designs & colours. |

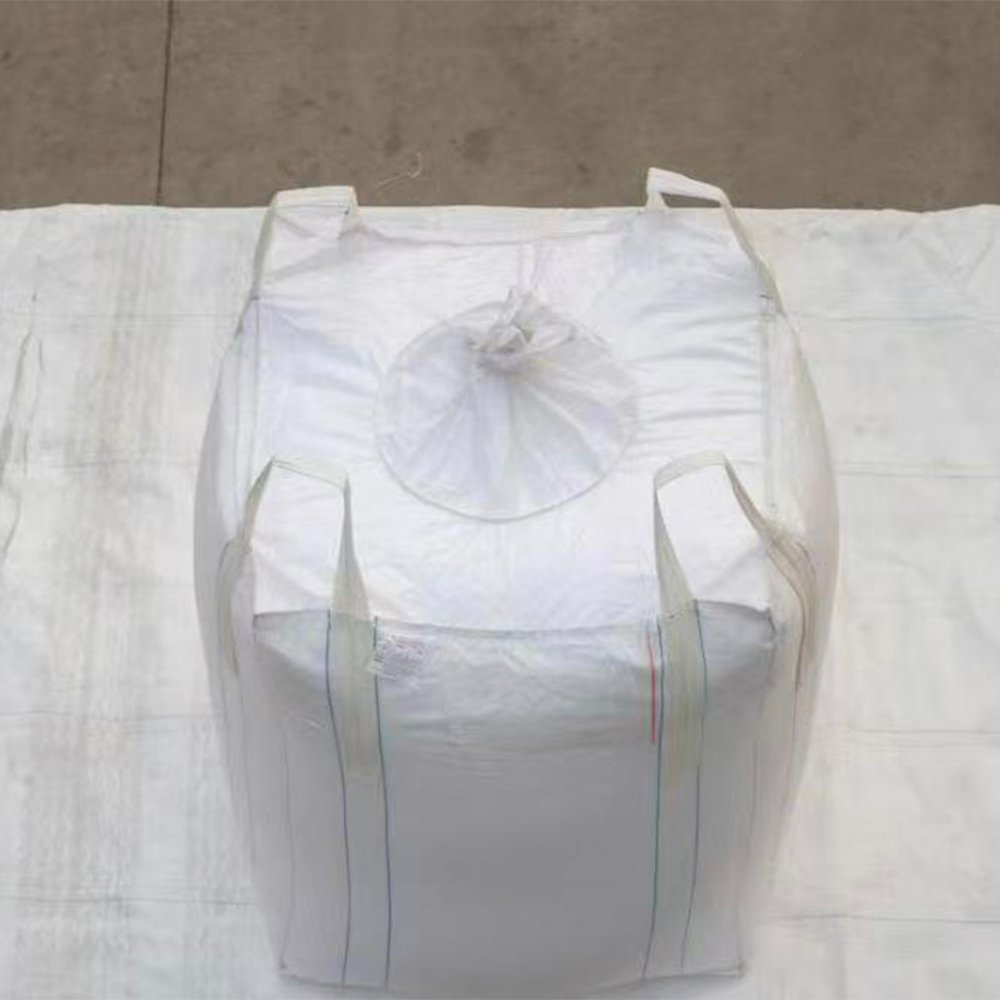

| Filling Option | Filling spout, Skirt (duffle top), Flap |
| Discharge Option | Discharge spout, Iris (Pyjama/Bonout), Star closer (Petle closer) & Conical |
| Liner | With or without liner. Liners comes in Loose, Glued, Tabbed, Stitched Liners, Suspended liners and form fit/ shape liners. |
| Printing Options | Printed (up to 4 colour) and unprinted. |
| Sewing Options | Heracle & safety, double chain with or without dustproof. |
| Sewing Thread/Webbing | In various colours including blue, black, green and red. All Colours defined by Pantone system. |
| Document Pockets | Ziplock – In various sizes and materials including transparent PE and transparent PP. Also available in self-closing type. |
| Fabric | Flat woven or tubular woven fabric with Coated or uncoated. |
| Extrusion | We produce 600 kgs per hour of PP tapes of various GSM and Strengths. We have the Beta gauge machines which continuously check the size and the denier of the tape. |
| Looms | High speed circular looms to produce quality fabric of any width and GSM. |
| Belt Weaving | Needle loom Machine for Loop and Dust proof making. |
| Lamination | Extrusion Coating Plant for fabrics lamination (width 2.2 meters). |
| Testing Lab | We have latest equipment of Tensile Testing, Elongation Testing, UV Testing, Load Test, Dart Impact Test, COF Testing & RIG Test to ensure Tape, Belt, Fabrics and bag quality. |
